UNDERCOUNTER COLLECTION · 02

Every sip,
a refreshing ritual.

A refined undercounter stainless-steel system for complete functionality and a fresh sparkling-water experience.

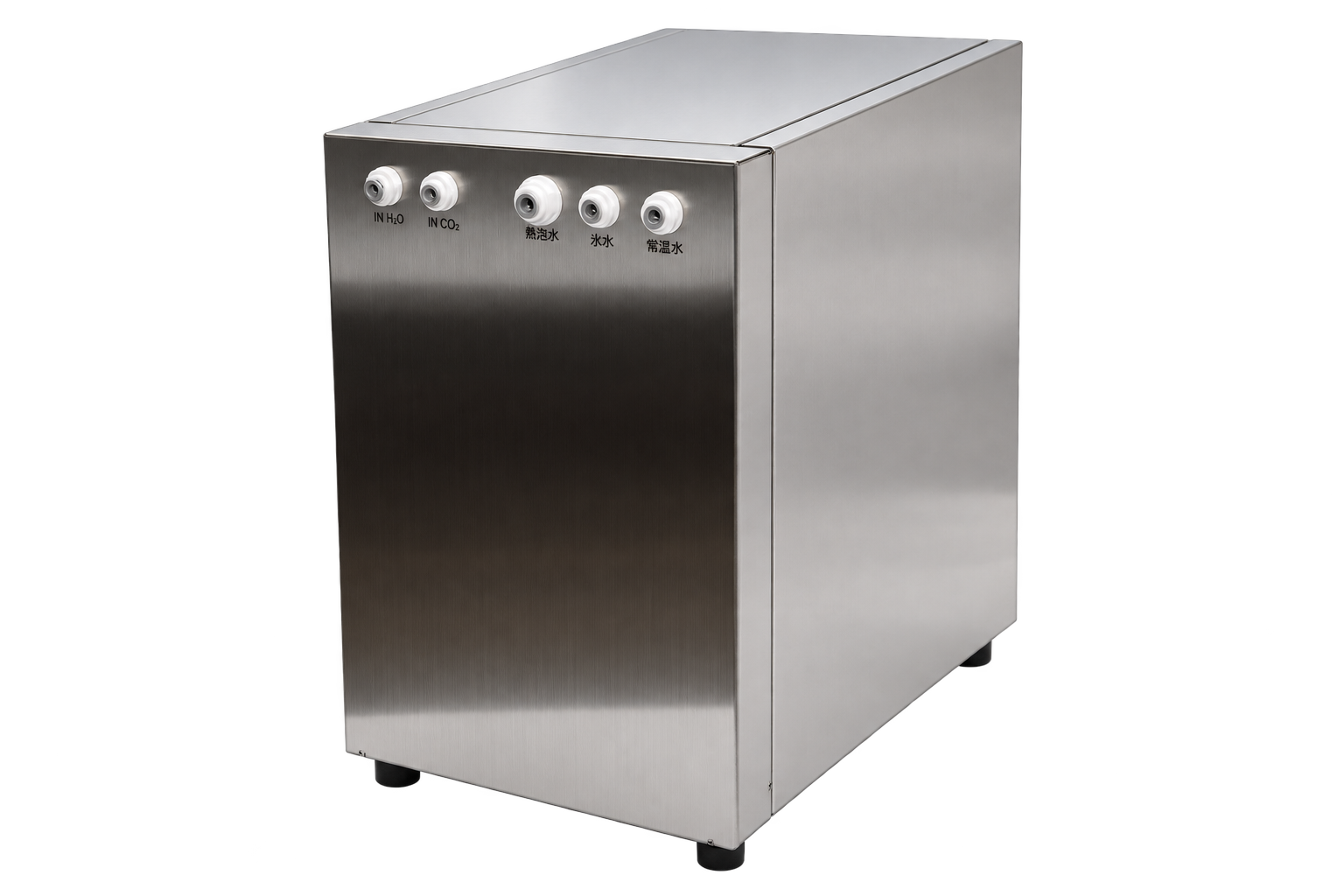

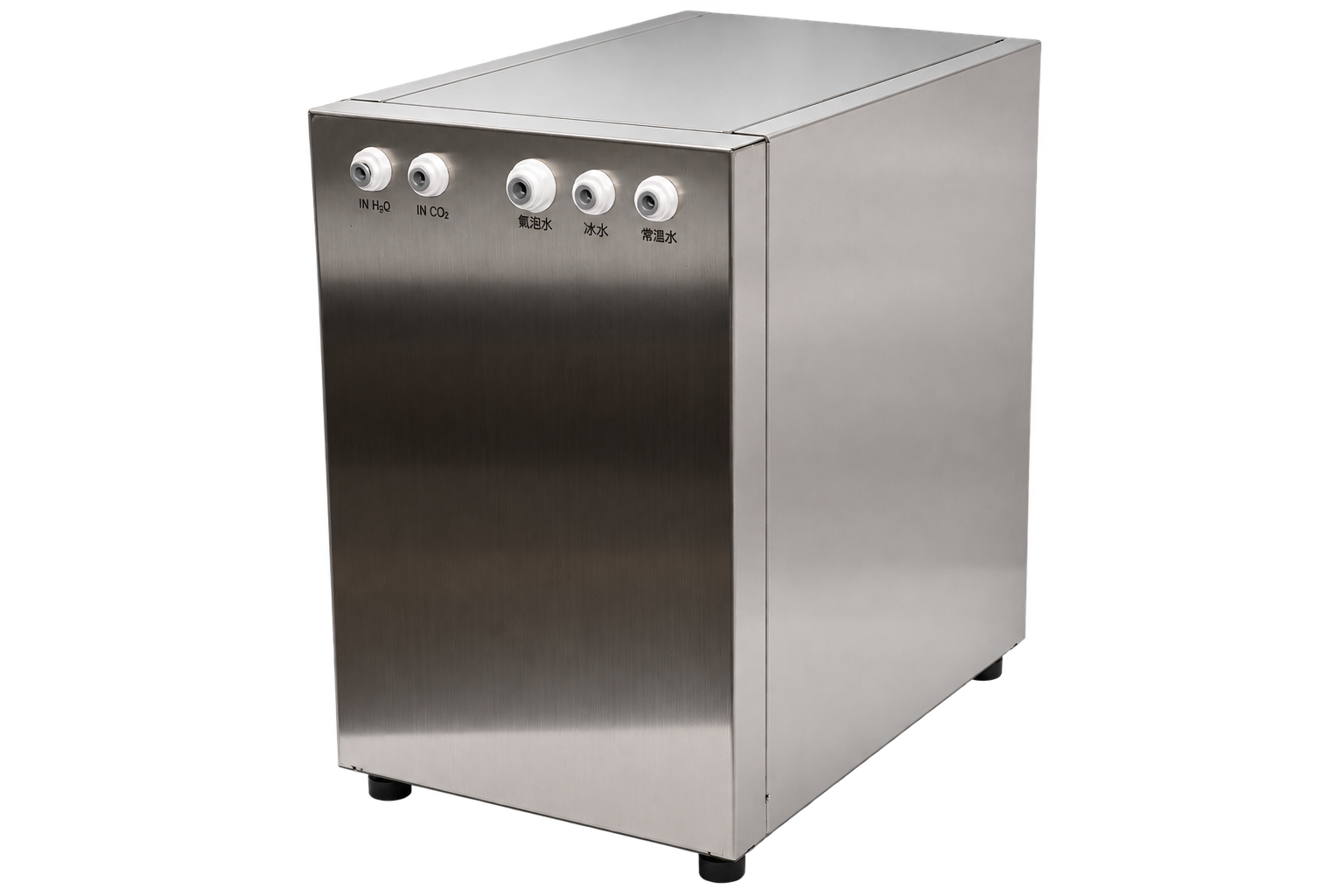

Undercounter sparkling water dispenser, front three-quarter view
STAINLESS
STEEL
UNDERCOUNTER
MODEL
SCROLL TO EXPLORE ↓

DESIGNED FOR EVERYDAY

Refreshment,
from within.

A clean stainless-steel undercounter system designed for dependable, refined professional water-service planning.

01

Refreshing Choices

Clear, intuitive drink selections at a glance.

02

Refined Stainless Steel

A stainless-steel exterior that complements modern bars, offices and commercial spaces.

03

Undercounter Planning

Designed to integrate beautifully into water-service installations.

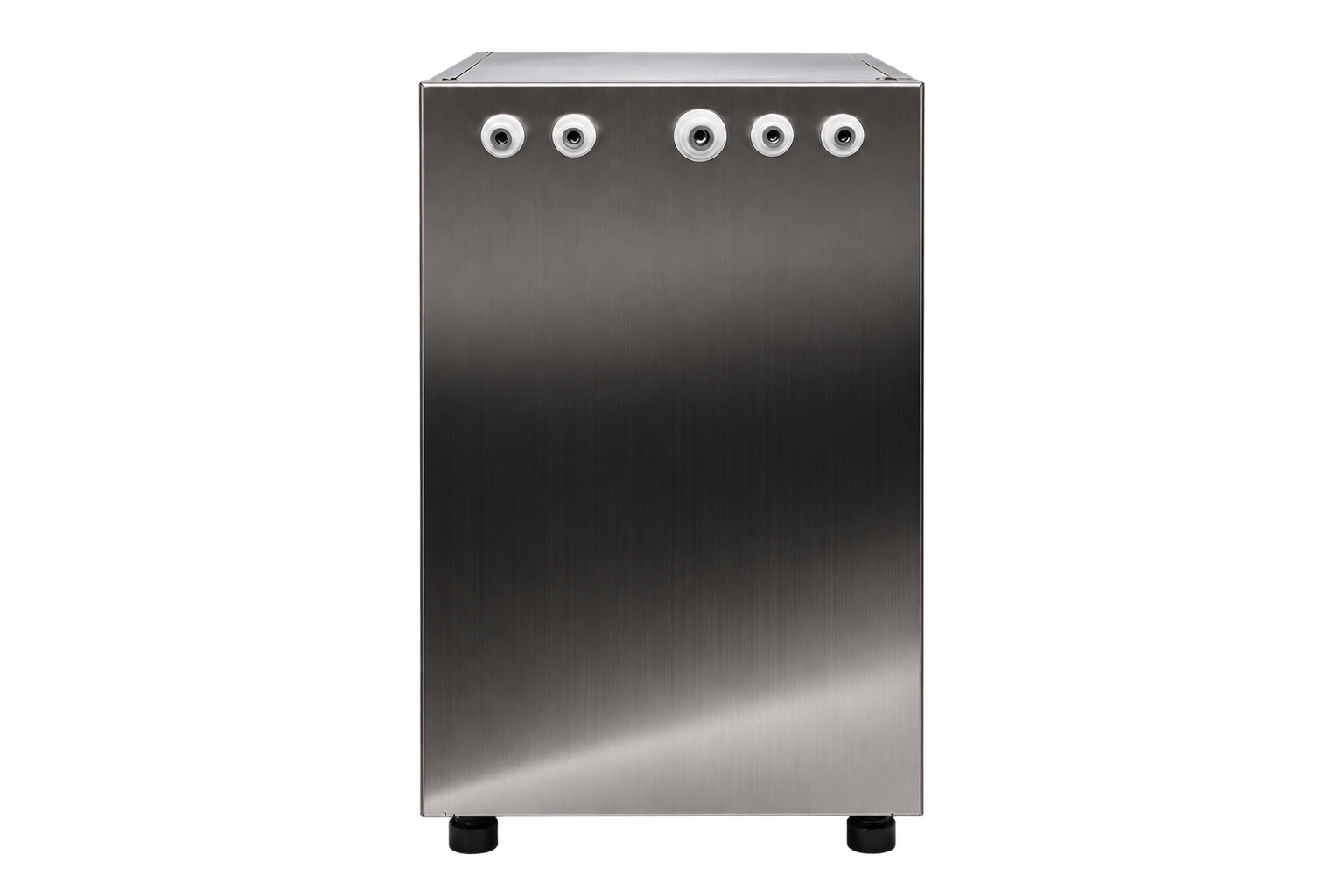

Undercounter sparkling water dispenser, front view

PRODUCT DETAILS

Undercounter
Sparkling Water Dispenser

Designed for undercounter installation, with a dispensing flow rate of 2 L/min and water production of up to 124.2 L/h. Cold water is dispensed at 3°C and sparkling water at 6°C.

Depth
42.7 cm
Width
25.0 cm
Height
42.3 cm

Main unit dimensions: 42.7 D × 25.0 W × 42.3 H cm.

TECHNICAL DETAILS

Technical Specifications

Water delivery, cooling performance and installation requirements.

Water & Cooling

Dispensing flow rate
2 L/min
Water production rate
Up to 124.2 L/h
Cold water temperature
3°C
Sparkling water temperature
6°C
Cooling tank capacity
2.5 L
Sparkling water tank capacity
1 L
Refrigerant
R600

Installation Conditions

Inlet water pressure
3 bar
Recommended CO₂ pressure
3.3 bar
Recommended inlet temperature
5–30°C
Ambient temperature
16–32°C
Electrical Specifications
Voltage versionCurrentCompressor power
110 V1.45 A125 W
220 V0.7 A110 W

LET'S TALK

Make refreshment,
part of every day.

Interested in product deployment, purchasing or partnership opportunities? Contact us by email or phone to discuss your requirements.
